M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

Name: M37G G9 Mechanical Seal Rubber Bellows BTRN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump
Brand: YUE MI
Price: 1 USD

China M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump wholesale

Brand Name : YUE MI

Model Number : M37G-G9

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Sealing : FKM CAR SIC TC CE NBR EPDM

Stationary Ring : Sic/Ssic/Tc

Item : M37G G9

Application : Water Pumps

Pump : BGM pump

Seal : Submersible Pump Seal

Export Area : All Over The World

Contact Now

Product Description

1. EQUIVALENT TO:
Bgm BT-RN seal
Aesseal T03 seal
Flowserve 42 seal
Latty T900 seal
Roten 2 seal
Sterling SR2 seal

2. Applicable Range:
Pressure in the seal chamber: 0-1.2MPa
Temperature in the seal chamber: -30ºC~180ºC
Linear Velocity: ≤ 10m/s
Medium: water, polluted water, oil and minor corrosive liquid

3. Features:
Complies with DIN24960
Certificate: ISO9001:2008
High quality and competitive price

Materials

ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite
STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite
BELLOWS: NBR, Vit/FKM, EPDM, Aflas, Neoprene
METAL PARTS: 304 SS standard or 316 SS option available

Operating Parameters

Dimensions:	all
Pressure:	145 PSI / 10 BAR
Temperature:	160°C / 320°F
Velocity:	10 M/S - 2000 FPM

Technical Features

Unbalanced
Single seal
Conical spring
Dynamic O-ring
To DIN 24960 specifications

Applications

Chemical pump
Oil pump
Water and waste water technology
Pulp and paper industry
Sugar industry
Industrial pump

M37G G9 Mechanical Seal Rubber Bellows BT-RN Aesseal T03 Flowserve 42 Roten 2 Seal For Pump

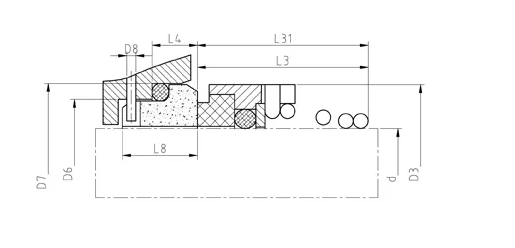

M37G Dimensions(mm)	Size	10	12	14	16	18	20	22	24	25	28	30	32	33	35	38	40	43	45	48	50	53	55	58	60	63	65	68	70	75	80
	d	10.0	12.0	14.0	16.0	18.0	20.0	22.0	24.0	25.0	28.0	30.0	32.0	33.0	35.0	38.0	40.0	43.0	45.0	48.0	50.0	53.0	55.0	58.0	60.0	63.0	65.0	68.0	70.0	75.0	80.0
	D3	20.0	220	24.0	26.0	31.0	34.0	36.0	38.0	39.0	42.0	44.0	46.0	47.0	49.0	54.0	56.0	59.0	61.0	64.0	66.0	0.69	71.0	78.0	79.0	83.0	85.0	88.0	90.0	98.0	103.0
	D6	17.0	19.0	21.0	23.0	27.0	29.0	31.0	33.0	34.0	37.0	39.0	42.0	42.0	44.0	49.0	51.0	54.0	56.0	59.0	62.0	65.0	67.0	70.0	720	75.0	77.0	81.0	83.0	88.0	95.0
	D7	21.0	23.0	25.0	27.0	33.0	35.0	37.0	39.0	40.0	43.0	45.0	48.0	48.0	50.0	56.0	58.0	61.0	63.0	66.0	70.0	73.0	75.0	78.0	80.0	83.0	85.0	90.0	92.0	97.0	105.0
	D8	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	3.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0
	L3	16.9	17.4	17.4	19.5	20.5	22.0	23.5	25.0	26.5	26.5	25.0	28.5	-	28.5	32.2	34.7	-	39.2	44.7	45.7	-	49.0	52.0	53.0	-	54.3	55.3	56.3	56.3	59.3
	L31	-	-	16.5	16.5	18.0	19.0	20.5	22.0	23.5	24.5	24.5	28.0	-	28.0	31.0	34.0	--	36.5	42.0	43.0	-	47.0	50.0	51.0	--	52.0	52.7	54.0	54.0	58.0
	L4	10.0	10.0	10.0	10.0	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	11.5	14.0	14.0	14.0	14.0	14.0	15.0	15.0	15.0	15.0	15.0	15.0	15.0	18.0	18.0	18.0	18.2
	L8	17.5	17.5	17.5	17.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	19.5	220	22.0	22.0	22.0	220	23.0	23.0	23.0	23.0	23.0	23.0	23.0	26.0	26.0	26.0	26.2
