Burg-Man Single Spring Type M37g Mechanical Seal With G60 Seat TC/TC

  • 1
  • 2
  • 3

Brand Name : YUE MI

Model Number : M37G-G60

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Standard Or Nonstand : Standard

Origin : Guangzhou, China

Service : OEM Customized Services

Temperature Range : -20°C to 120°C

Face : VIT SIC SIC

Application : Water Pumps, Sewage Pumps, Chemical Pumps

Dimensions : Depend your model

Contact Now

We usually have 4 types of stationary seat for customer's choice,BT,G4,G9 and G6

The normal material combination include ss304/resin CA/SS304/NBR,SIC/resin carbon/ss304/
NBR,sic/sic/ss304/nbr,TC/resin carbon/ss304/nbr,tc/tc/ss304/nbr and so on. we also can
make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

Burg-Man Single Spring Type M37g Mechanical Seal With G60 Seat TC/TC

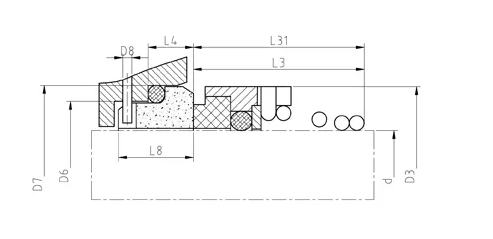

M37G Dimensions(mm)
Size L3 L31 L4 L8 d D3 D6 D7 D8
10 16.9 - 10.0 17.5 10.0 20.0 17.0 21.0 3.0
12 17.4 - 10.0 17.5 12.0 220 19.0 23.0 3.0
14 17.4 16.5 10.0 17.5 14.0 24.0 21.0 25.0 3.0
16 19.5 16.5 10.0 17.5 16.0 26.0 23.0 27.0 3.0
18 20.5 18.0 11.5 19.5 18.0 31.0 27.0 33.0 3.0
20 22.0 19.0 11.5 19.5 20.0 34.0 29.0 35.0 3.0
22 23.5 20.5 11.5 19.5 22.0 36.0 31.0 37.0 3.0
24 25.0 22.0 11.5 19.5 24.0 38.0 33.0 39.0 3.0
25 26.5 23.5 11.5 19.5 25.0 39.0 34.0 40.0 3.0
28 26.5 24.5 11.5 19.5 28.0 42.0 37.0 43.0 3.0
30 25.0 24.5 11.5 19.5 30.0 44.0 39.0 45.0 3.0
32 28.5 28.0 11.5 19.5 32.0 46.0 42.0 48.0 3.0
33 - - 11.5 19.5 33.0 47.0 42.0 48.0 3.0
35 28.5 28.0 11.5 19.5 35.0 49.0 44.0 50.0 3.0
38 32.2 31.0 14.0 220 38.0 54.0 49.0 56.0 4.0
40 34.7 34.0 14.0 22.0 40.0 56.0 51.0 58.0 4.0
43 - -- 14.0 22.0 43.0 59.0 54.0 61.0 4.0
45 39.2 36.5 14.0 22.0 45.0 61.0 56.0 63.0 4.0
48 44.7 42.0 14.0 220 48.0 64.0 59.0 66.0 4.0
50 45.7 43.0 15.0 23.0 50.0 66.0 62.0 70.0 4.0
53 - - 15.0 23.0 53.0 0.69 65.0 73.0 4.0
55 49.0 47.0 15.0 23.0 55.0 71.0 67.0 75.0 4.0
58 52.0 50.0 15.0 23.0 58.0 78.0 70.0 78.0 4.0
60 53.0 51.0 15.0 23.0 60.0 79.0 720 80.0 4.0
63 - -- 15.0 23.0 63.0 83.0 75.0 83.0 4.0
65 54.3 52.0 15.0 23.0 65.0 85.0 77.0 85.0 4.0
68 55.3 52.7 18.0 26.0 68.0 88.0 81.0 90.0 4.0
70 56.3 54.0 18.0 26.0 70.0 90.0 83.0 92.0 4.0
75 56.3 54.0 18.0 26.0 75.0 98.0 88.0 97.0 4.0
80 59.3 58.0 18.2 26.2 80.0 103.0 95.0 105.0 4.0
