Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

Name: Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With ORing
Brand: YUE MI
Price: 1 USD

China Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring wholesale

Brand Name : YUE MI

Model Number : 156

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 1/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Secondary Seal : NBR, EPDM, Vit

Materail : CAR SIC TC PTFE

Application : Water Pumps, Centrifugal Pumps, Submersible Pumps

Fluid Compatibility : Water, Oil, Mild Chemicals

Spring : Stainless Steel

Spring Material : Stainless Steel

Material : Carbon, Ceramic, Stainless Steel

Keywords : water pump seal

Performance : Corrosion

Riverside Pump Seal : YM Pump Seal

Contact Now

Product Description

Mechanical seal-multiple spring which are availble in a wide varietyh of elastomers for handing practically every industril fluid. All components are held togther by a snap ring in a unized construction design and can be repaired easily on-site.

High Quality Mechanical Seals
156 mechanical seal

Temperature	-30ºC to 200ºC, dependent on the elastomer
Pressure	Up to 5 bar
Speed	Up to 10 m/s
End play/axial float allowance	±0.1mm
Size	8mm to 50mm
Brand	YM
Face	Ceramic, SIC, TC
Seat	Carbon, SIC, TC
Elastomer	NBR, EPDM, VITON
Spring	SS304, SS316
Metal parts	SS304, SS316

Operating Limits:

Pressure: ≤0.5MPa
Speed: ≤10m/s
Temperature: -30ºC~+200ºC

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)
Type 156 Domestic Water Pump Mechanical Seal For Water Pump Single Spring Elastomer Mechanical Seal With O-Ring

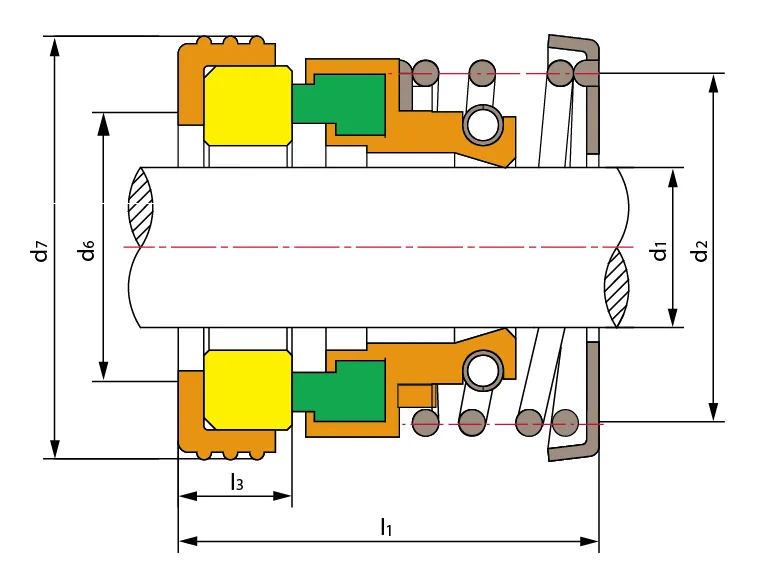

Model	d1 (mm)	d2	d6	d7	l1	l3
156-8	8	16	13	18/21	18	5/6
156-9	9	18	16	21	23	6
156-10	10	20	16	20/22/24	23	6.5
156-11	11	20	16	24	23	7
156-12	12	22.5	17	26	24	7
156-13	13	22.5	17	26	24	7
156-14	14	24.5	21	28/30	25	7
156-15	15	24.5	21	28/30	25	7
156-16	16	28.5	22	32	27	8
156-17	17	28.5	22	32	27	8
156-18	18	31.5	25	35	29	8
156-19	19	31.5	25	35	29	8

Model	d1 (mm)	d2	d6	d7	l1	l3
156-20	20	31.5	27	38	31	8
156-22	22	34.5	29	40	32	8
156-25	25	37.5	32	44	33	9
156-28	28	40.5	34	46	34	9
156-30	30	44.5	38	50	35	9
156-32	32	47.5	40	54	37	9
156-35	35	50.5	44	58	40	10
156-38	38	55	46	60	42	10
156-40	40	56.5	48	64	43	10
156-45	45	61.5	52	66	45	10
156-50	50	66.5	58	72	47	10
