WB3 Chemical Pump Bellows Mechanical Seal PTFE for Industriy Pumps

Name: WB3 Chemical Pump Bellows Mechanical Seal PTFE for Industriy Pumps
Brand: YUE MI
Price: 1 USD

China WB3 Chemical Pump Bellows Mechanical Seal PTFE for Industriy Pumps wholesale

Brand Name : YUE MI

Model Number : WB3

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 10/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Replacement To : John Crane

Face : EPDM SIC SIC

Shaft Size : 20mm25mm

Seal Face : SIC/SIC/

Export Area : All over the world

Product : Customizable OEM water pump seal

Delivery : Stock

Material : PTFE Bellow

Contact Now

PTFE bellow seals are designed for extremely corrosive chemicals, including concentrated acids, salts, strong oxidising & reducing agents, and chemically active organic compounds. All components which come in contact with the liquid being sealed are made of chemically inert material. Metallic components clamping ring and springs are located outside the media. In this seal series Glass filled PTFE face is composite moulded with highly flexible PTFE bellows.

Application
Used in acids, alkalis & extremely corrosive services.

Operating Limits
Pressure : 5 bars (Max)
Temperature : (-)20c to (+)90c
Speed : 2900 rpm (Max)
Sizes : 16 mm to 100 mm

Material
Seal Face : Ceramic, silicon carbide, GFT
Secondary Seals : PTFE / GFT
Metal Parts : SS 316 / Hastelloy

Pacific Seals WB3 PTFE Bellow Mechanical Seal for Acid Proof Pumps, Plastic Pumps, and Vacuum Equipment
Structural Features:
single end, balanced, independent direction of rotation, PTFE bellow, bellow transmission, external type mechanical seal. This component is easy to install. The bellow provides pressure compensation to the sealing faces. The bellow design can prevent radial runout so the floatability of the rotary ring is increased.
Scopes of Application:
widely used in acid proof pumps, plastic pumps, alkali pumps, vacuum equipment and other rotary devices.

WB3 Chemical Pump Bellows Mechanical Seal PTFE for Industriy Pumps

Operational Conditions:

Temperature	≤200ºC
Pressure	Up to 0.5 Mpa
Speed	Up to 10 m/s
End play/axial float allowance	±0.1mm
Size	20mm,25mm
Brand	YUEMI
Face	SIC
Seat	SIC
Elastomer	PTFE
Spring	SS304, SS316
Metal parts	SS304, SS316

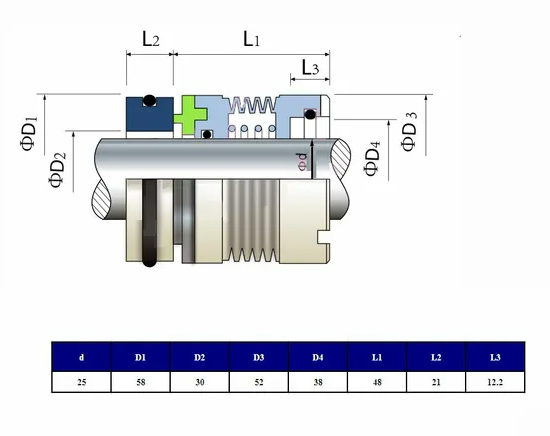

WB3 Chemical Pump Bellows Mechanical Seal PTFE for Industriy Pumps Images
