John Crane 58u Mechanical Seals Exquisite workmanship Replace Multi-Spring O-Ring Pusher Seals for Water Pump

Name: John Crane 58u Mechanical Seals Exquisite workmanship Replace MultiSpring ORing Pusher Seals for Water Pump
Brand: YUE MI
Price: 1 USD

China John Crane 58u Mechanical Seals Exquisite workmanship Replace Multi-Spring O-Ring Pusher Seals for Water Pump wholesale

Brand Name : YUE MI

Model Number : John Crane 58U

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 10/PCS

Price : consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200/Set/Month

Delivery Time : 5-8 word days

Packaging Details : Details Carton

Transport Package : box

Leadtime : Fast to Ship

Secondary Sealing : Fkm SIC TC

Spring : SUS316/SUS304

Customization : Accept

Service : OEM Customized Services

Replacement : 58uJohn Crane

Sample : Can Provide

Seal Faces : Carbon vs Ceramic, Carbon vs Silicon Carbide, Ceramic vs Silicon Carbide

Sealing : FKM CAR SIC TC CE NBR EPDM

Stationary Ring : Sic/car Tc/tc

Seal Face : Car Vs Cer ,SIC VS SIC

Contact Now

Product Description

John Crane Mechanical Seal 58U Multi-Spring O-Ring Pusher Seals for Water Pump

Operational Conditions:

John Crane seal 58U is structural simple and reliable. It has a wide application scope.
58U, mechanical seal is suitable for clean water pumps, sewage pumps, submerged pumps, process pumps, etc.
This also can provide important material certifications available. Salvador, Senior, Sandy.
Temperature: -30ºC to 200ºC, depend on o-ring material
Pressure: Up to 1.7 bar
Speed: Up to 25 m/s
End play/axial float allowance ±1mm

Materials:
Stationary Ring: Ceramic, Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, PTFE
Spring and Metal Parts: SUS304/SUS316
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Performance Capabilities:

Temperature	-40ºC to 150ºC, dependent on the elastomer
Pressure	≤1.7MPa
Speed	≤25m/s
End play/axial float allowance	±0.1mm
Size	14-100MM
Brand	YUEMI
Face	Carbon, SiC, TC
Seat	Ceramic, SiC, TC
Elastomer	NBR, EPDM, etc.
Spring	SS304, SS316
Metal parts	SS304, SS316
Idividual Packing	Using foam and plastic paper wrapped, then put one piece of seal in one box,finally put in standard export carton.

John Crane 58u Mechanical Seals Exquisite workmanship Replace Multi-Spring O-Ring Pusher Seals for Water Pump

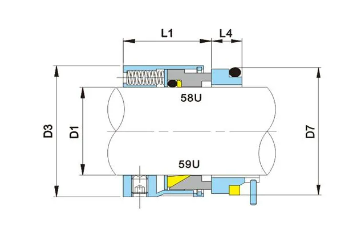

Shaft Size D1	Size Code	D3	D7	L1	L4
16	0160	26.0	27.0	23.0	12.0
18	0180	32.0	33.0	24.0	13.5
20	0200	34.0	35.0	24.0	13.5
22	0220	36.0	37.0	24.0	13.5
24	0240	38.0	39.0	26.7	13.3
25	0250	39.0	40.0	27.0	13.0
28	0280	42.0	43.0	30.0	12.5
30	0300	44.0	45.0	30.5	12.0
32	0320	46.0	48.0	30.5	12.0
33	0330	47.0	48.0	30.5	12.0
35	0350	49.0	50.0	30.5	12.0
38	0380	54.0	56.0	32.0	13.0
40	0400	56.0	58.0	32.0	13.0
43	0430	59.0	61.0	32.0	13.0
45	0450	61.0	63.0	32.0	13.0
48	0480	64.0	66.0	32.0	13.0
50	0500	66.0	70.0	34.0	13.5
53	0530	69.0	73.0	34.0	13.5
55	0550	71.0	75.0	34.0	13.5
58	0580	78.0	78.0	39.0	13.5
60	0600	80.0	80.0	39.0	13.5
63	0630	83.0	83.0	39.0	13.5
65	0650	85.0	85.0	39.0	13.5
68	0680	88.0	90.0	39.0	13.5
70	0700	90.0	92.0	45.5	14.5
75	0750	95.0	97.0	45.5	14.5
80	0800	104.0	105.0	45.0	15.0
85	0850	109.0	110.0	45.0	15.0
90	0900	114.0	115.0	50.0	15.0
95	0950	119.0	120.0	50.0	15.0
100	1000	124.0	125.0	50.0	15.0

Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.

Question 2: What is the minimum order quantity for each order?
Answer: For products of regular models, the minimum order quantity is at least five. We welcome you to test the quality of our products and our services through small orders and look forward to long-term cooperation with you next.

Question3: What is your company's service tenet?
Answer: Quality first, service upmost. We promises we will strictly pack our products to ensure that they are intact during transportation

Question4: What are the prices of your products?
Answer: You can contact us for price consultation and negotiation.

Question5: Can I try to get a SAMPLE before the order?
Answer: Sure. Our company provides you with samples for free, but you will have to pay for the international delivery (freight collect payment).

John Crane 58u Mechanical Seals Exquisite workmanship Replace Multi-Spring O-Ring Pusher Seals for Water Pump Images
